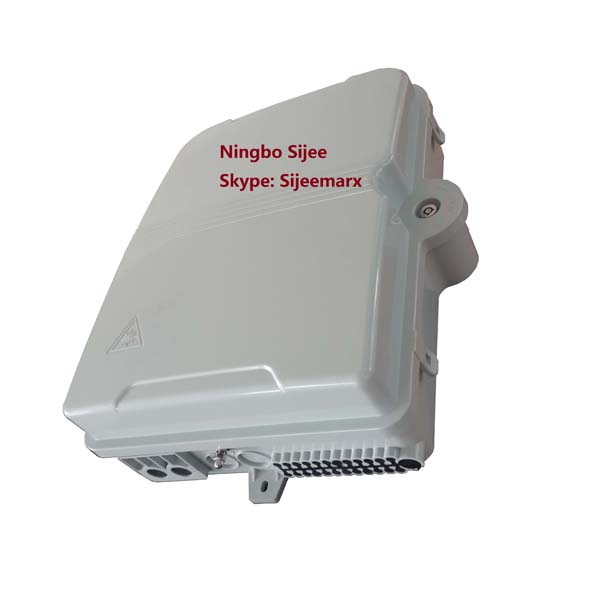

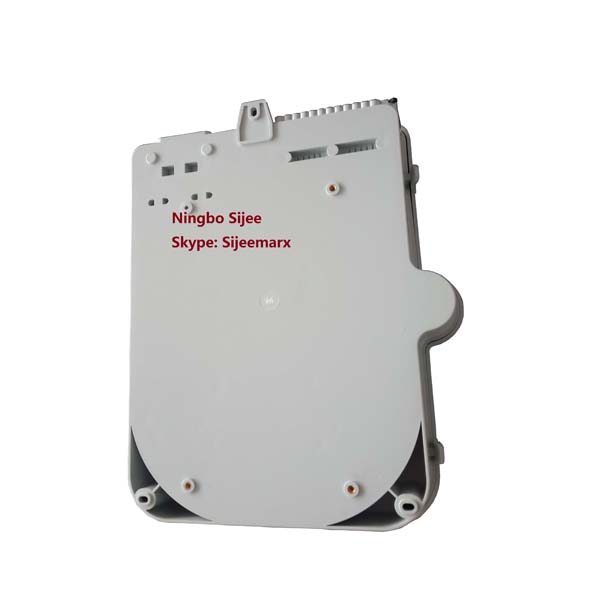

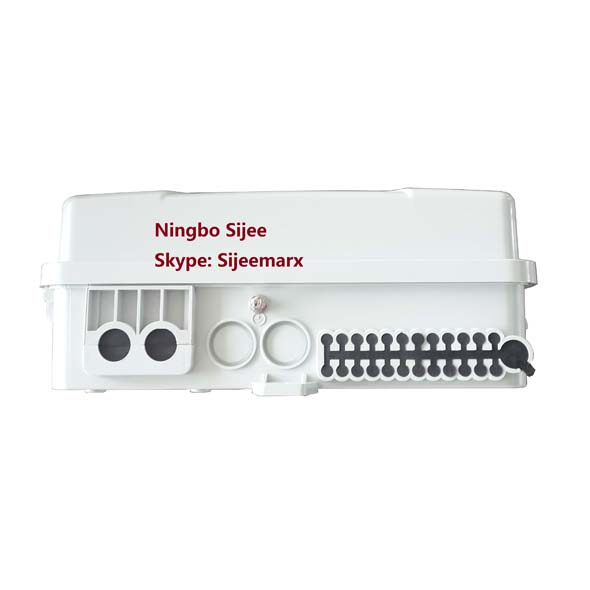

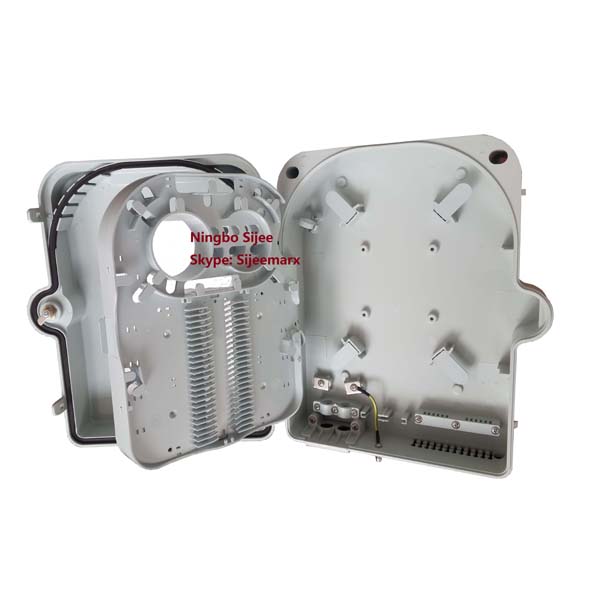

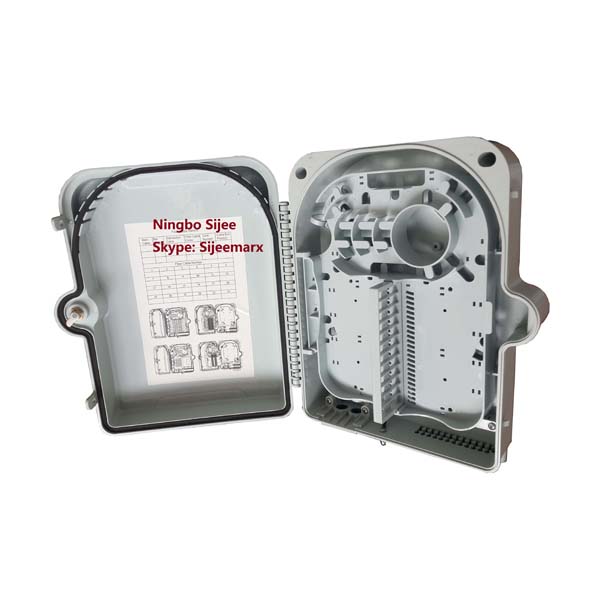

FTTH Plastic Fiber Optic Distribution Box Terminal Box
SJ-ODB-SK06 Plastic Fiber Optic Distribution Box Terminal Box
Plastic Fiber Optic Distribution Box / Fiber Splitter Box is used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.
Material: PC+ABS,wet-proof, water-proof, dust-proof, anti-aging, protection grade is IP65.
Small Volume, For Indoor/Outdoor application. Compact structure,convenient installation and maintenance.
Specification：
Model NO.
Dimension(HxWxD)mm
Capacity
PLC Splitter
Weight
Installation
SJ-ODB-SK01
185X135X41
4 Fibers
PLC 1*4
0.28KGS
Wall mounting
SJ-ODB-SK02
200X160X45
8 Fibers
NO
0.42KGS
Wall mounting
SJ-ODB-SK03
210X215X50
8 Fiber
NO
0.57KGS
Wall mounting
SJ-ODB-SK04-A
220X210X50
8 Fibers
PLC 1*8
0.48KGS
Wall mounting
SJ-ODB-SK04-B
220X210X50
12 Fibers
NO
0.48KGS
Wall mounting
SJ-ODB-SK05
225X200X65
12 Fibers
PLC 1*8
0.71KGS
Wall mounting
SJ-OTB-SK06
320×240×100
24 Fibers
PLC 1*16
1.14KGS
Wall mounting
SJ-OTB-SK07-A
310X235X100
16 Fibers
NO
1.40KGS
Wall mounting
SJ-OTB-SK07-B
310X235X100
16 Fibers
PLC 1*16
1.40KGS
Wall mounting
SJ-OTB-SK08
300X275X95
16 Fibers
PLC 1*16
1.00KGS
Wall mounting
SJ-OTB-SK09
325X275X95
16 Fibers
NO
1.12KGS
Wall mounting
SJ-OTB-SQ10
185X140X36
6 Fibers
NO
0.3KGS
Wall mounting
SJ-OTB-SQ11
210X180X50
8 Fibers
PLC 1*8
0.64KGS
Wall mounting
SJ-OTB-SQ12
210X180X50
8 Fibers
NO
0.64KGS
Wall mounting
SJ-OTB-SQ13
330X240X95
16 Fibers
PLC 1*16
1.4KGS
Wall mounting
SJ-OTB-SQ14
300X220X80
16 Fibers
NO
1.21KGS
Wall mounting
SJ-OTB-SQ15
325X240X95
16 Fibers
PLC 1*16
1.38KGS
Wall mounting
SJ-OTB-SQ16
325X240X95
16 Fibers
NO
1.38KGS
Wall mounting
