Drawer Type Fiber Optic Termination Box/ Patch Panel

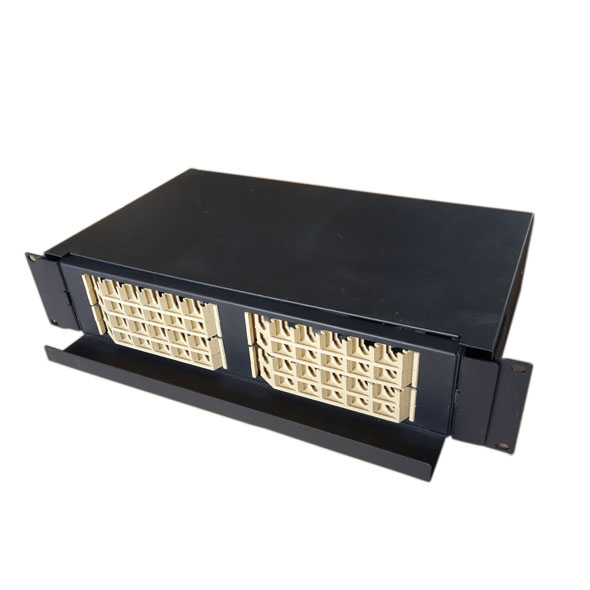

SJ-OTB-M06 Drawer Type Fiber Optic Termination Box/ Patch Panel
SJ-OTB-M06 Drawer Type Fiber Optic Termination Box/Patch Panel(OTB) is mainly used as terminal equipment of fiber optical cable for optical fiber wiring ,fixation, fusion and patching.
1) Capacity: 12-24-36-48-72-96-144 fibers, etc.
2) 19/23inches: 1U to 5U standard installation
3) Color: Black, White and grey,or customized
4) Several adapters can be installed: FC, SC, ST, LC
5) Cable ports suitable for single, ribbon and bunchy fiber cables
Easy to operate and convenient maintenance
Excellent mechanic performance, solid and durable
It is mainly used in the CATV, telecommunication equipment room and network equipment room.
Specification:
|
Model NO. |
Height |
Capacity |
Material |
Installation |
Splice Tray Capacity |
|
SJ-OTB-M01 |
1U |
12-24 Fibers |
Cold-rolled Steel |
Slide-out Rack-mount |
12 fibers/tray; 24fibers/tray |
|
SJ-OTB-M02 |
2U |
24 Fibers |
Cold-rolled Steel |
Slide-out Rack-mount |
12 fibers/tray; 24fibers/tray |
|
SJ-OTB-M03 |
3U |
48 Fiber |
Cold-rolled Steel |
Slide-out Rack-mount |
12 fibers/tray; 24fibers/tray |
|
SJ-OTB-M04 |
5U |
72-96 Fibers |
Cold-rolled Steel |
Slide-out Rack-mount |
12 fibers/tray; 24fibers/tray |
|
SJ-OTB-M05 |
1U |
12-24 Fibers |
Cold-rolled Steel |
Slide-out Rack-mount |
12 fibers/tray; 24fibers/tray |
|
SJ-OTB-M06 |
2U |
48 Fibers |
Cold-rolled Steel |
Slide-out Rack-mount |
12 fibers/tray; 24fibers/tray |
|
SJ-OTB-M07 |
1U |
24 Fibers |
Cold-rolled Steel |
Fixed Rack-mount |
12 fibers/tray; 24fibers/tray |
|
SJ-OTB-M08 |
1U |
24 Fibers |
Cold-rolled Steel |
Fixed Rack-mount |
12 fibers/tray; 24fibers/tray |
|
SJ-OTB-M09 |
1U |
24 Fibers |
Cold-rolled Steel |
Fixed Rack-mount |
12 fibers/tray; 24fibers/tray |
|
SJ-OTB-M10 |
1U |
24 Fibers |
Cold-rolled Steel |
Fixed Rack-mount |
12 fibers/tray; 24fibers/tray |
|
SJ-OTB-M11 |
1U |
12 Fibers |
Cold-rolled Steel |
Rotary Fixed Rack-mount |
12 fibers/tray; 24fibers/tray |
|
Comments: 1. Overall dimension could be custom made by requirement. 2. Configuration of Box can be customized according to customer requirements |
|||||
