Drawer Type Fiber Optic Termination Box/ Patch Panel 5

Your position > HOME > PRODUCTS

Capacity: 12-24fibers
Several adapters can be installed: FC, SC, ST, LC
Model NO.:SJ-OTB-M05

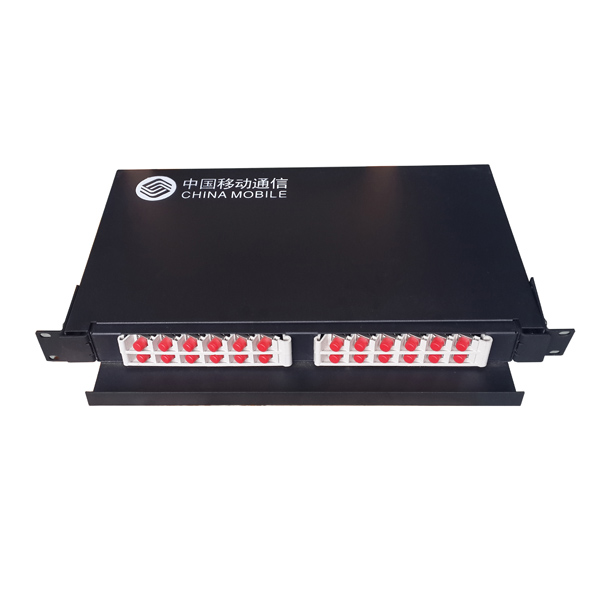

SJ-OTB-M05 Drawer Type Fiber Optic Termination Box/ Patch Panel

SJ-OTB-M05 Drawer Type Fiber Optic Termination Box/Patch Panel(OTB) is mainly used as terminal equipment of fiber optical cable for optical fiber wiring ,fixation, fusion and patching.

1) Capacity: 12-24-36-48-72-96-144 fibers, etc.

2) 19/23inches: 1U to 5U standard installation

3) Color: Black, White and grey,or customized

4) Several adapters can be installed: FC, SC, ST, LC

5) Cable ports suitable for single, ribbon and bunchy fiber cables

Easy to operate and convenient maintenance

Excellent mechanic performance, solid and durable

It is mainly used in the CATV, telecommunication equipment room and network equipment room.

Specification:

Model NO.	Height	Capacity	Material	Installation	Splice Tray Capacity
SJ-OTB-M01	1U	12-24 Fibers	Cold-rolled Steel	Slide-out Rack-mount	12 fibers/tray; 24fibers/tray
SJ-OTB-M02	2U	24 Fibers	Cold-rolled Steel	Slide-out Rack-mount	12 fibers/tray; 24fibers/tray
SJ-OTB-M03	3U	48 Fiber	Cold-rolled Steel	Slide-out Rack-mount	12 fibers/tray; 24fibers/tray
SJ-OTB-M04	5U	72-96 Fibers	Cold-rolled Steel	Slide-out Rack-mount	12 fibers/tray; 24fibers/tray
SJ-OTB-M05	1U	12-24 Fibers	Cold-rolled Steel	Slide-out Rack-mount	12 fibers/tray; 24fibers/tray
SJ-OTB-M06	2U	48 Fibers	Cold-rolled Steel	Slide-out Rack-mount	12 fibers/tray; 24fibers/tray
SJ-OTB-M07	1U	24 Fibers	Cold-rolled Steel	Fixed Rack-mount	12 fibers/tray; 24fibers/tray
SJ-OTB-M08	1U	24 Fibers	Cold-rolled Steel	Fixed Rack-mount	12 fibers/tray; 24fibers/tray
SJ-OTB-M09	1U	24 Fibers	Cold-rolled Steel	Fixed Rack-mount	12 fibers/tray; 24fibers/tray
SJ-OTB-M10	1U	24 Fibers	Cold-rolled Steel	Fixed Rack-mount	12 fibers/tray; 24fibers/tray
SJ-OTB-M11	1U	12 Fibers	Cold-rolled Steel	Rotary Fixed Rack-mount	12 fibers/tray; 24fibers/tray
Comments: 1. Overall dimension could be custom made by requirement. 2. Configuration of Box can be customized according to customer requirements
