FTTH Plastic Fiber Optic Distribution Box Terminal Box

Your position > HOME > PRODUCTS

Dimension(HxWxD)mm：185X135X41
Capacity：4 Fibers
Weight：0.28KGS
Installation：Wall mounting
Model NO.:SJ-ODB-SK01

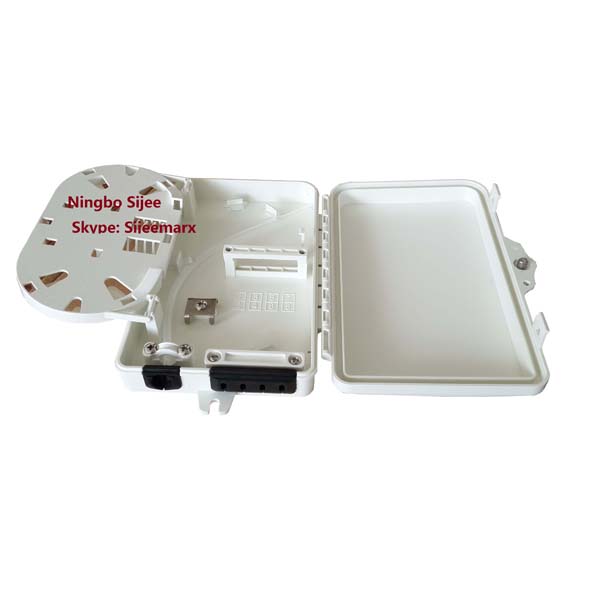

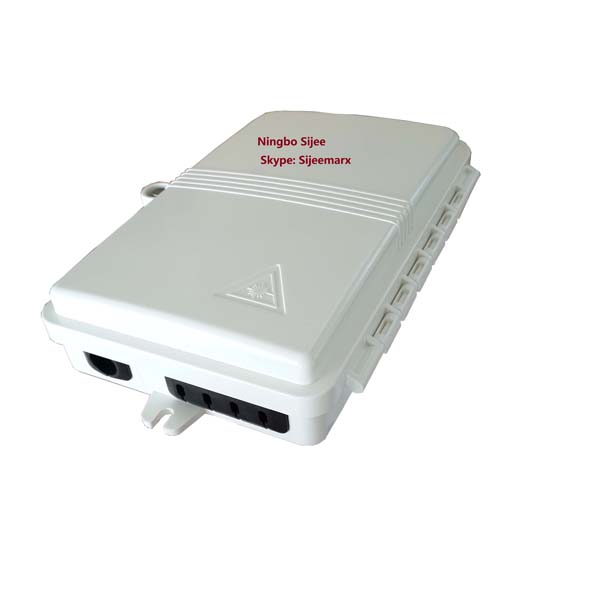

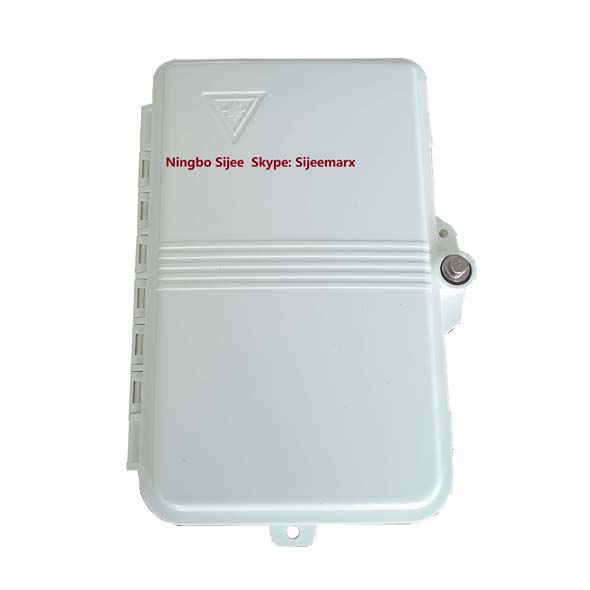

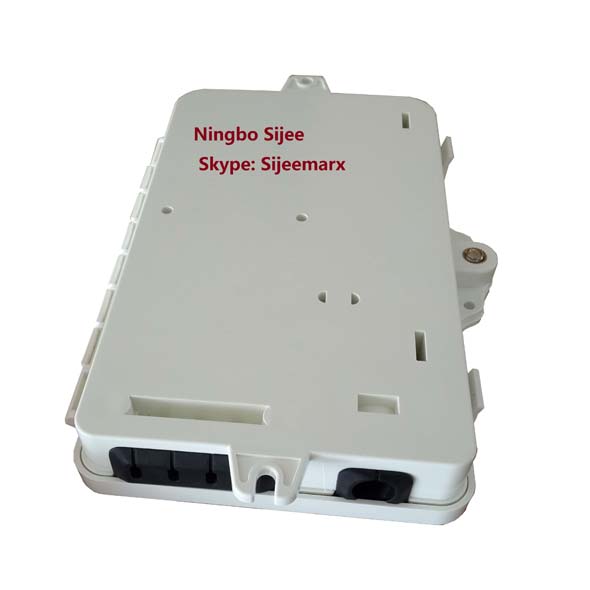

SJ-ODB-SK01 Plastic Fiber Optic Distribution Box

Plastic Fiber Optic Distribution Box / Fiber Splitter Box is used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.

Material: PC+ABS,wet-proof, water-proof, dust-proof, anti-aging, protection grade is IP65.

Small Volume, For Indoor/Outdoor application. Compact structure,convenient installation and maintenance,

Specification：

Model NO.	Dimension(HxWxD)mm	Capacity	PLC Splitter	Weight	Installation
SJ-ODB-SK01	185X135X41	4 Fibers	PLC 1*4	0.28KGS	Wall mounting
SJ-ODB-SK02	200X160X45	8 Fibers	NO	0.42KGS	Wall mounting
SJ-ODB-SK03	210X215X50	8 Fiber	NO	0.57KGS	Wall mounting
SJ-ODB-SK04-A	220X210X50	8 Fibers	PLC 1*8	0.48KGS	Wall mounting
SJ-ODB-SK04-B	220X210X50	12 Fibers	NO	0.48KGS	Wall mounting
SJ-ODB-SK05	225X200X65	12 Fibers	PLC 1*8	0.71KGS	Wall mounting
SJ-OTB-SK06	320×240×100	24 Fibers	PLC 1*16	1.14KGS	Wall mounting
SJ-OTB-SK07-A	310X235X100	16 Fibers	NO	1.40KGS	Wall mounting
SJ-OTB-SK07-B	310X235X100	16 Fibers	PLC 1*16	1.40KGS	Wall mounting
SJ-OTB-SK08	300X275X95	16 Fibers	PLC 1*16	1.00KGS	Wall mounting
SJ-OTB-SK09	325X275X95	16 Fibers	NO	1.12KGS	Wall mounting
SJ-OTB-SQ10	185X140X36	6 Fibers	NO	0.3KGS	Wall mounting
SJ-OTB-SQ11	210X180X50	8 Fibers	PLC 1*8	0.64KGS	Wall mounting
SJ-OTB-SQ12	210X180X50	8 Fibers	NO	0.64KGS	Wall mounting
SJ-OTB-SQ13	330X240X95	16 Fibers	PLC 1*16	1.4KGS	Wall mounting
SJ-OTB-SQ14	300X220X80	16 Fibers	NO	1.21KGS	Wall mounting
SJ-OTB-SQ15	325X240X95	16 Fibers	PLC 1*16	1.38KGS	Wall mounting
SJ-OTB-SQ16	325X240X95	16 Fibers	NO	1.38KGS	Wall mounting
