Model No.:SJ-NC-5

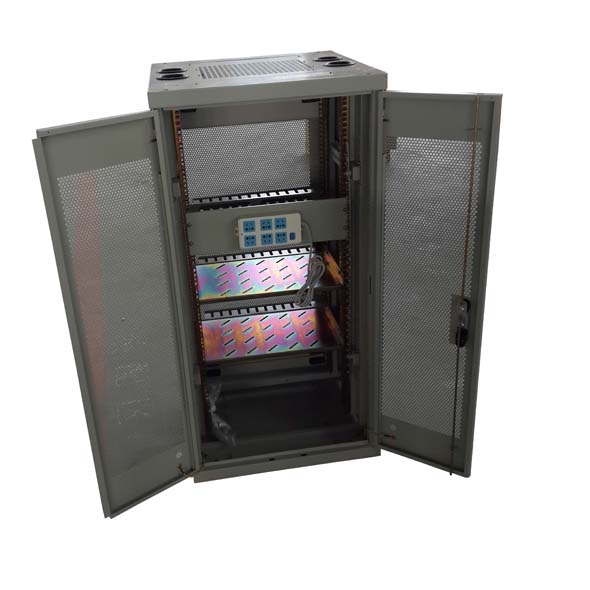

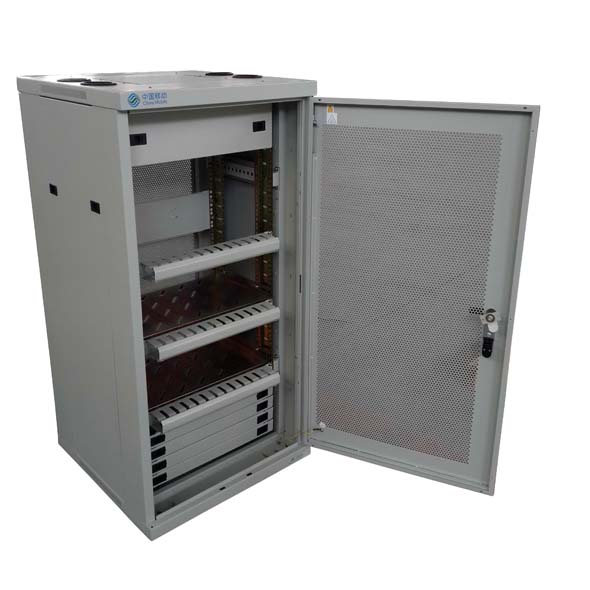

SJ-NC-5 19" Rack Universal Server Rack / Network Cabinet

This network cabinet is widely used for 19 inch network server enclosure perferated cabinet installing and placing of 19” international standard equipment and the system integration;

The product conforms to ANSI/EIA, RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7 and GB/T3047.2-92 standards and provides reliable installation, support, power supply and ventilation device and effectively protect system equipment.

Product name :	Network cabinet
(1) Brand name :	OEM
(2) Product specification:	18U-47U
	Width: 600mm, 800mm
	Depth:600mm,800mm,900mm,1000mm,1200mm
(3) Certification :	ISO9001,TLC, OHSAS 18001, ISO 14001
(4) Cabinet standard :	19'' inch inner installation
(5) Material :	High quality SPCC cold rolled steel T:1.2-2.0mmEnclosure: 5-fold profiled sheet steel 1.5mmDoor Plate: sheet steel 2.0mmRear Plate: sheet steel 1.5mmMounting plate: Zinc-plate 2.0mm-3.0mm
(6) Place of origin :	Ningbo China (mainland)
(7) Color :	Black, White or Grey (Special Color on Request)
(8)MOQ:	1piece
(9)Loading Capacity:	800KGS
(10) Installation :	19'' inch inner installation
(11) Surface Treatment :	Box & Door: Phosphating, Electrostatic powder spraying in orange-peel or plain finish
(12) Delivery details:	15 working days.
(13) Packing:	(a) Film around the spare parts.
	(b) EPE corner protectors in the four corners of carton.
	(c) High quality cartons with strip.
(14)Accessories
Cooling fan	800mm deep or below
	800mm deep include 800mm
PDU	A set of six universal power socket
Tray	Below 1.6m (include 1.6m)
	Below 1.6m
Screw and net	Below 1.6m (include 1.6m)
	Below 1.6m
Castor and support	Four M12 adjustable foot, four 2" heavy-duty casters
(15)Comments	1. Overall dimension could be custom made by requirement. 2. Configuration of Box can be customized according to customer requirement.
