Product name :

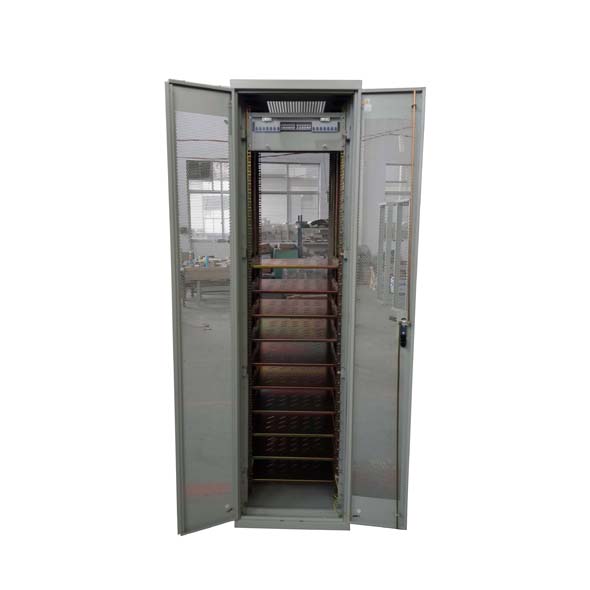

Network cabinet

(1) Brand name :

OEM

(2) Product specification:

18U-47U

Width: 600mm, 800mm

Depth:600mm,800mm,900mm,1000mm,1200mm

(3) Certification :

ISO9001,TLC, OHSAS 18001, ISO 14001

(4) Cabinet standard :

19'' inch inner installation

(5) Material :

High quality SPCC cold rolled steel T:1.2-2.0mmEnclosure: 5-fold profiled sheet steel 1.5mmDoor Plate: sheet steel 2.0mmRear Plate: sheet steel 1.5mmMounting plate: Zinc-plate 2.0mm-3.0mm

(6) Place of origin :

Ningbo China (mainland)

(7) Color :

Black, White or Grey (Special Color on Request)

(8)MOQ:

1piece

(9)Loading Capacity:

800KGS

(10) Installation :

19'' inch inner installation

(11) Surface Treatment :

Box & Door: Phosphating, Electrostatic powder spraying in orange-peel or plain finish

(12) Delivery details:

15 working days.

(13) Packing:

(a) Film around the spare parts.

(b) EPE corner protectors in the four corners of carton.

(c) High quality cartons with strip.

(14)Accessories

Cooling fan

800mm deep or below

800mm deep include 800mm

PDU

A set of six universal power socket

Tray

Below 1.6m (include 1.6m)

Below 1.6m

Screw and net

Below 1.6m (include 1.6m)

Below 1.6m

Castor and support

Four M12 adjustable foot, four 2" heavy-duty casters

(15)Comments

1. Overall dimension could be custom made by requirement. 2. Configuration of Box can be customized according to customer requirement.
