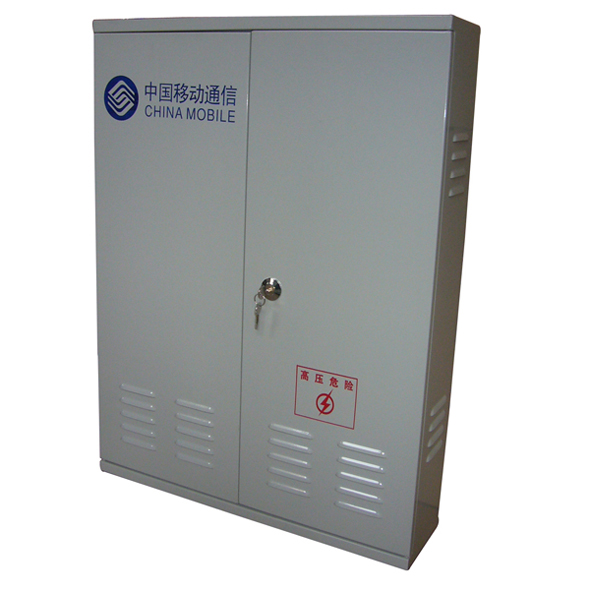

SJ-OFOC-FTTB-1 Equipment Enclosure /Equipment Cabinet / Wall Mounting Enclosure

Material:   Box & Door : sheet steel 1.2mm-1.5mm Mounting plate: Zinc-coated plate 1.5mm-2.0mm

Surface Treatment:  Phosphating, Electrostatic powder spraying in orange-peel or plain finish

Color:Color can be customized according to customer requirement.

Supply includes:  Box of all-round,Single door for Width<1000mm, double-door for othersDoor hingeLock (Cam lock, Switch lock, 3-point lock are available)Zinc-plated mounting plateFoamed-in door sealing gasket

Optional Accessories:  Perforated mounting strip, Mounting plate, Wall fixing brackets Lock (According to customer requirements), Gland plate, Rain canopy, Support rails Mounting clip for support rail For more accessories.

Protection degree:   IP 66  Impact resistance: IK10

Package:  Product is packed in carton or based on customers' request

Specification：

Model NO.	Dimension (H×W×D)MM	Material	Installation	Weight
SJ-OFOC-FTTB-1	800x600x150	Cold Rolled Steel	Wall-mounted	As actual
Comments: 1. Overall dimension could be custom made by requirement. 2. Configuration of Box can be customized according to customer requirement.

FTTB Cabinet /EPON/GPON Broadband Data Integration Cabinet

ONU Cabinet/ Corridor Integrated Access Cabinet/ outdoor  Access Cabinet

Broadband Data Integration Cabinet is specifically designed for last sector of FTTH installation , the cabinet brings a flexible solution for safely containing optical converter,optical fiber terminal block and optical transmitter and other electronic equipments.

access cabinet is normally installed in the corridor of living building,.It equips with a strong venting system inside, the hermetic shell is designed according to CE standard. The cabinet contains various of batteries,electric power and all kinds of electric equipments.It has capacious space to contain power area,distributing&splicing area and equipment area. The cabinet meets the requirements of IP55 protection level.

Double-door design,convenient for installation&maintenance
Adopt 200L 110 High-frequency module,convenient for cable forming and maintenance
Capacious space for the installation of CATV equipment
Flexible configuration for clients' choices,simple operation and easy for maintenance
Fiber storage capacity up to 12 cores,and network panel 6-48 ports
Shutter design for cabinet window,in favor of the heat dispersing&venting of active equipments
Using Cold Rolled Steel material,and surface treatment of deareasing,rustproof,phosphoric spraying,exquisite design with precise dimension and craftsmanship.
Posses voice frequency cable distribution and equipment power access safety socket
Burglar-proof lock system

Standard configuration:

Cabinet (Earthing Wire, lock, cable fastner and dust-proof cotton included), Power strip, Air switch, Splicing tray, distribution module bracket, Krone module, Accessories bag, wiring mounting bracket.

Optional configuration:

Surge protector(thunder protector), Fan, Heather, Temperature Sensor.

Features:

· Equipment installation space: 2U

· Power socket outlet: 2 positions

· Provides protective function and power socket with all-purpose outlets

· With resource management function

· Convenient and quick to change transmission system route

· Equipment installation function: 2 sets 1U DSLAM or Ethernet switch or ONU

· Power outlet and air switch have surge protective device, which prevent inner facilities from thunder impact effectively

· Customized requirements are accepted

Main Technical Index

• Operating temperature -10℃～+50℃

• Ambient temperature -40℃～+60℃

• Relative humidity ≤90(+30℃)

• Atmospheric pressure 70～106Kpa

• Input voltage range 220VAC (+10～-15%)

• Max flow for Lightning protection devices 40KA

• Start temperature for fan ： ³+35℃

• Life Duration of fan >40000 hours

• Temperature control equipment MTBF >30000hours

• Insulation Resistance ≥1000MΩ(500VDC)

• Grounding resistance <0.1Ω

• Voltage-resistance strength：non-puncture, no arc-over under 3KVDC/1min
