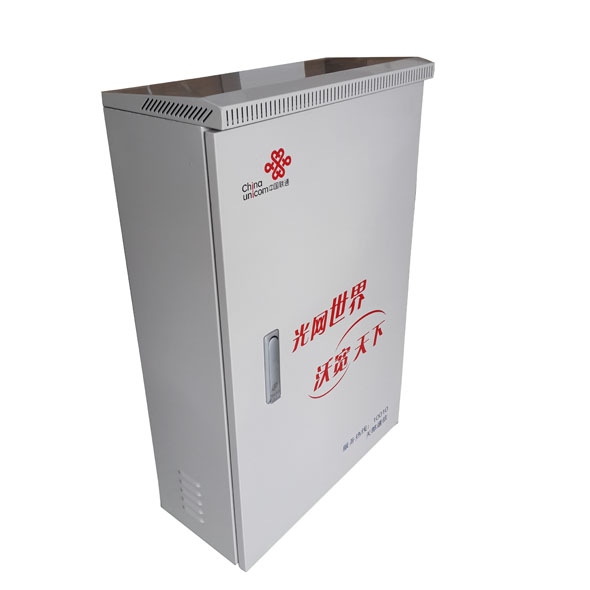

SJ-OFOC-02 Outdoor Fiber Optic Enclosure/ Wall Mounting Enclosure/ Equipement Cabinet

Material: Box & Door : sheet steel 1.2mm-1.5mm Mounting plate: Zinc-coated plate 1.5mm-2.0mm

Surface Treatment:  Phosphating, Electrostatic powder spraying in orange-peel or plain finish

Color:Color can be customized according to customer requirement.

Supply includes:  Box of all-round,Single door for Width<1000mm, double-door for othersDoor hingeLock (Cam lock, Switch lock, 3-point lock are available)Zinc-plated mounting plateFoamed-in door sealing gasket

Optional Accessories:  Perforated mounting strip, Mounting plate, Wall fixing brackets Lock (According to customer requirements), Gland plate, Rain canopy, Support rails Mounting clip for support rail For more accessories.

Protection degree:   IP 66  Impact resistance: IK10

Package:  Product is packed in carton or based on customers' request

Double-door design,convenient for installation&maintenance
Adopt 200L 110 High-frequency module,convenient for cable forming and maintenance
Capacious space for the installation of CATV equipment
Flexible configuration for clients' choices,simple operation and easy for maintenance
Fiber storage capacity up to 12 cores,and network panel 6-48 ports
Shutter design for cabinet window,in favor of the heat dispersing&venting of active equipments
Using Cold Rolled Steel material,and surface treatment of deareasing,rustproof,phosphoric spraying,exquisite design with precise dimension and craftsmanship.
Posses voice frequency cable distribution and equipment power access safety socket
Burglar-proof lock system

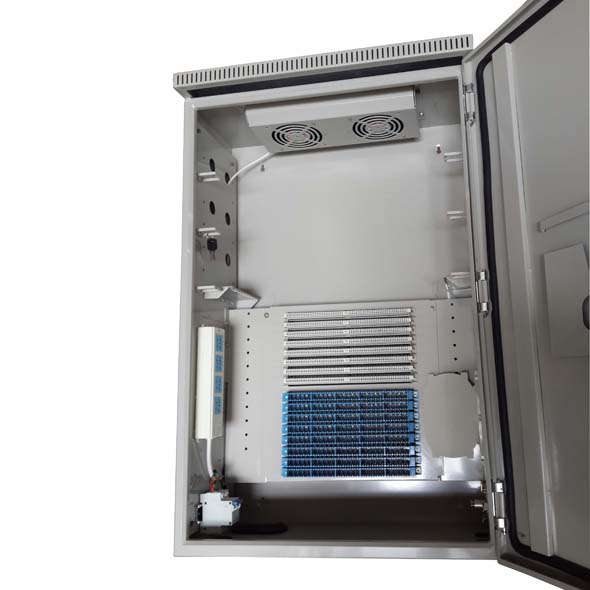

Standard configuration:

Cabinet (Earthing Wire, lock, cable fastner and dust-proof cotton included), Power strip, Air switch, Splicing tray, distribution module bracket, Krone module, Accessories bag, wiring mounting bracket.

Optional configuration:

Surge protector(thunder protector), Fan, Heather, Temperature Sensor.
