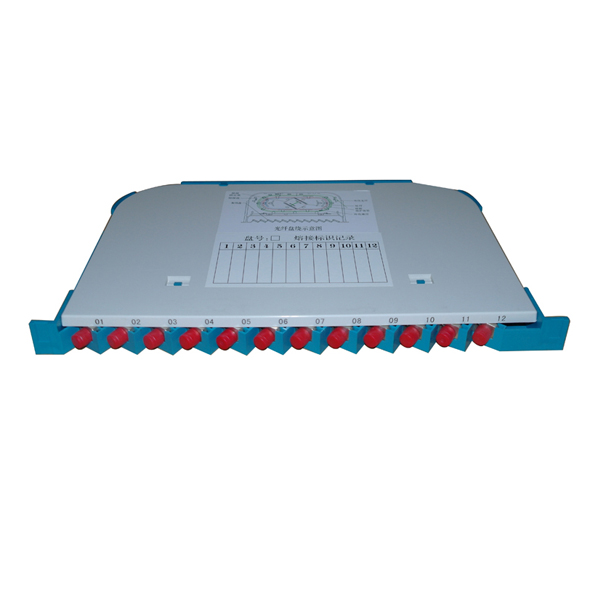

SJ-Module-2 Splicing & Distribution Module, Integrative Splice Tray

Light and beautiful plastic structure ,splicing & distribution module for easy operations and convenient installation, Modular structure makes the storage enlarging convenient,30°oblique installation of adapters, preventing eyes from harm of laser and ensuring the fiber bending radius . Many kinds of NTM splicing &distribution marks make the recording conveniently.

External Dimension: 335mm×200mm×25mm

Material: ABS

Features:

1)12-pair fiber optic connection and distribution module
2)Designed for patching and splicing in ODF system
3) Cable storage and splice both in front
4) Longer bending radius for fiber， Easy operation of pigtails

5) Suitable for all kinds of equipment designed according to 19" machine frame standard, and can be easily disposed for particular needs

6) The fusing distribution board of the unit box is double side structure, integrating the fusing and distribution into one unity, suitable for ribbon or non-ribbon optical fiber cable

7) Every board can be clamped with 12FC or SC or LC or ST adaptors which bevel the face side with 30 degrees

8) That not only ensures the curvature radius of fiber, but also prevents the eyes from highlight

9) There is a cover-plate on the tray after fusion

Specification：
